BUILD YOUR SPACE

Modular Organizer

Choose your modules. Make room for what matters.

Where would you like to start?

25.4 mm grid spacing. Heights below are installed heights, measured from the bottom of the base.

Your layout

6x4 layout base · 152.4 × 101.6 mm · 23/24 cells occupied

Top-down footprint layout · colors show your selections

Select a module and tap an empty slot to move it. On a keyboard, focus a placed module and use arrow keys; press R to rotate. Drag modules to open slots on a desktop.

Note tray

Holding area

Every selected module is on the grid.

Find your modules

Source design references below. The layout above shows footprints and selected colors; these are not product photographs.

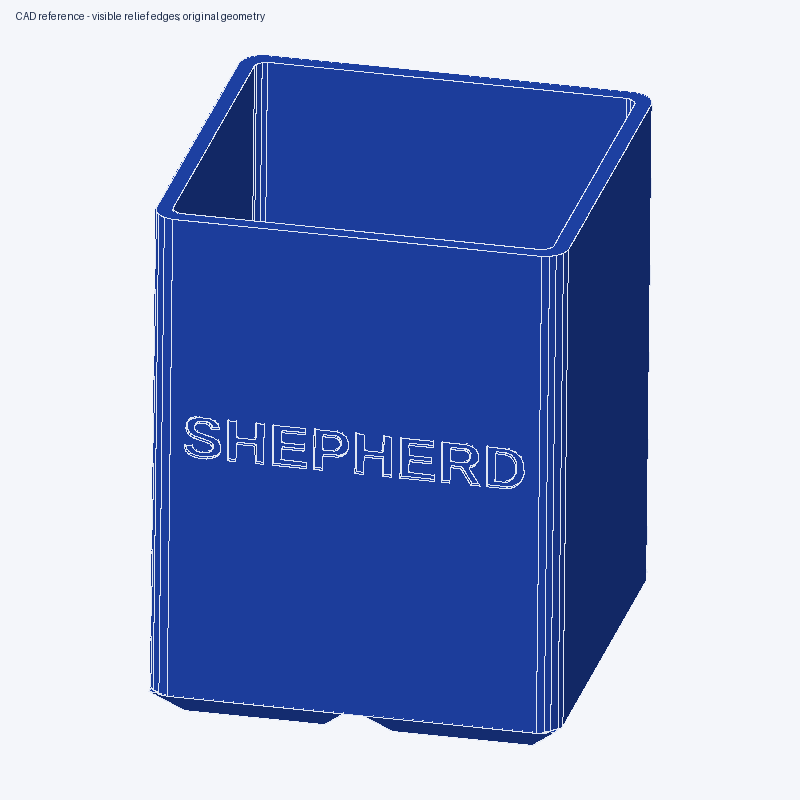

Deep bin source design reference

Deep bin

2 × 2 cells · 67.25 mm installed height

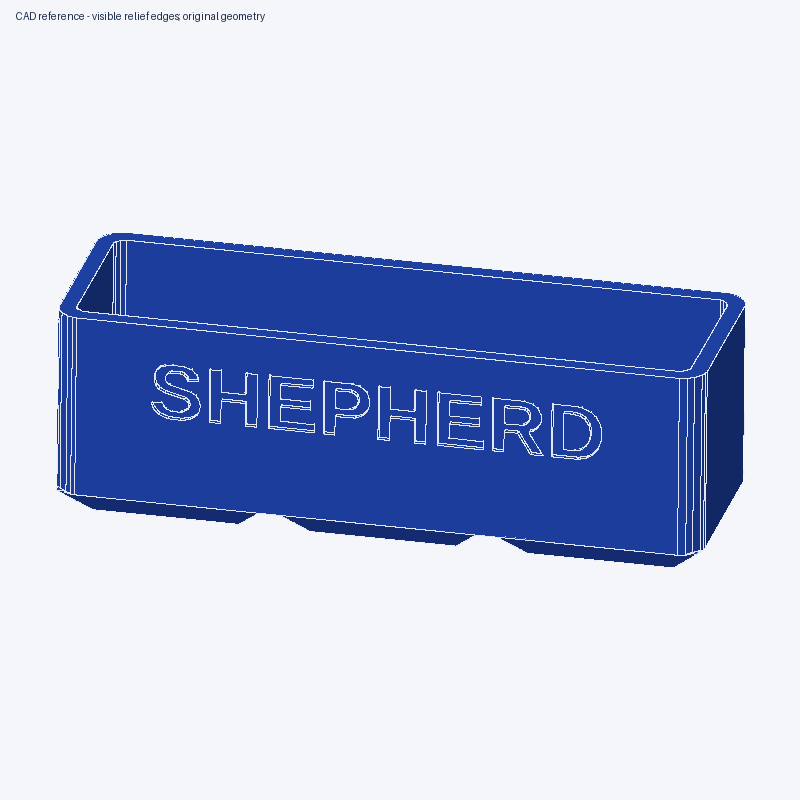

Long tray source design reference

Long tray

3 × 1 cells · 27.25 mm installed height

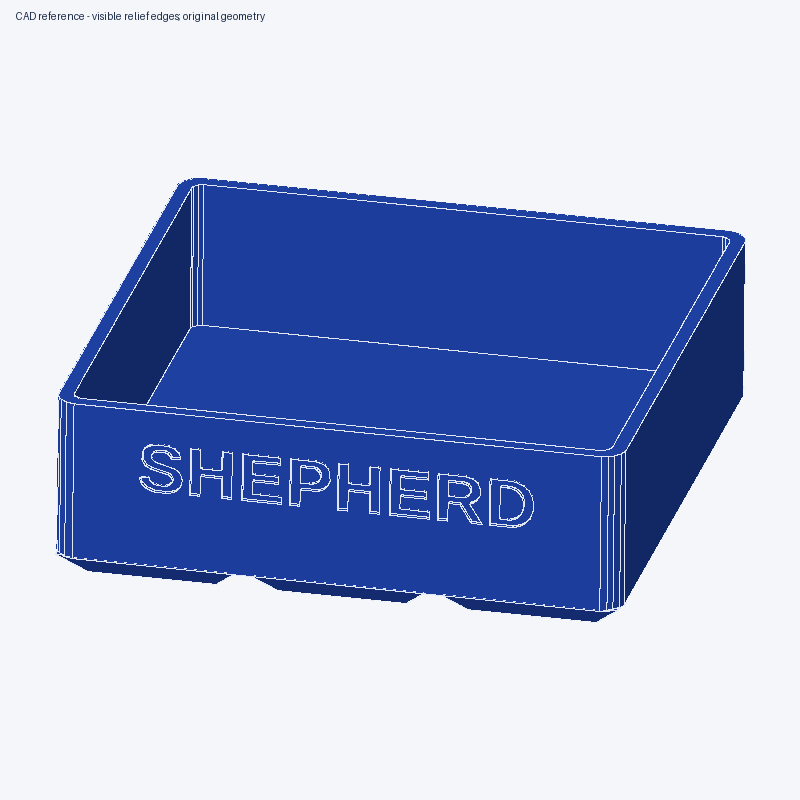

Note tray source design reference

Note tray

3 × 3 cells · 27.25 mm installed height

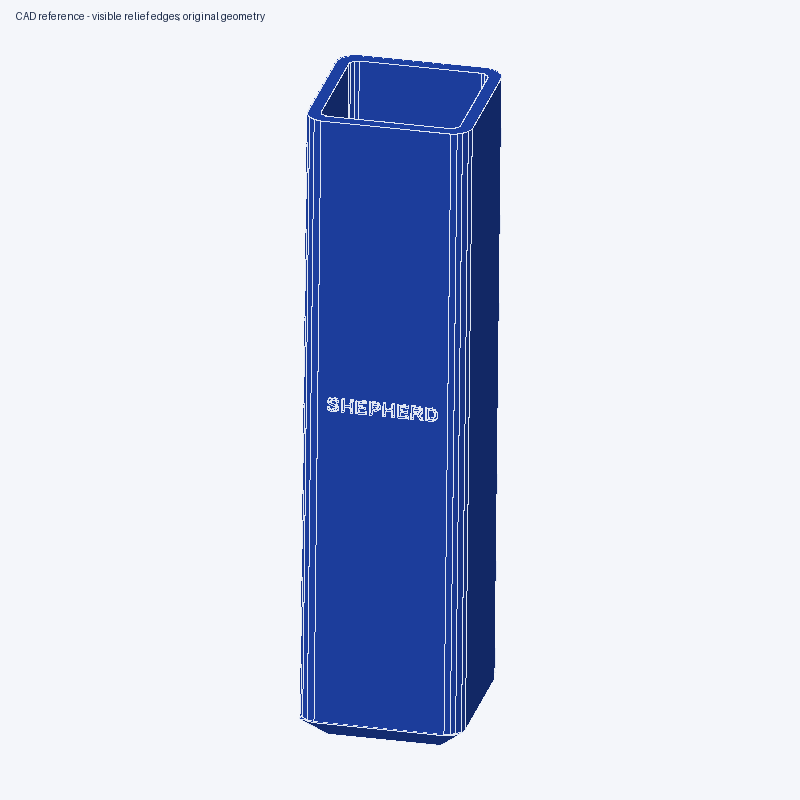

Pencil cup source design reference

Pencil cup

1 × 1 cells · 102.25 mm installed height

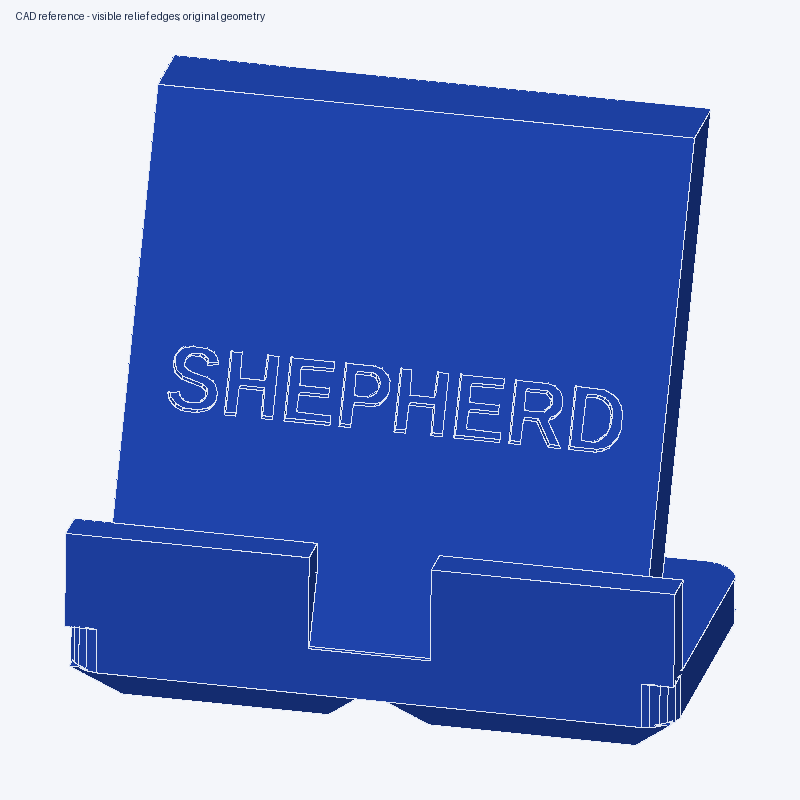

Phone stand source design reference

Phone stand

2 × 1 cells · 49.05 mm installed height

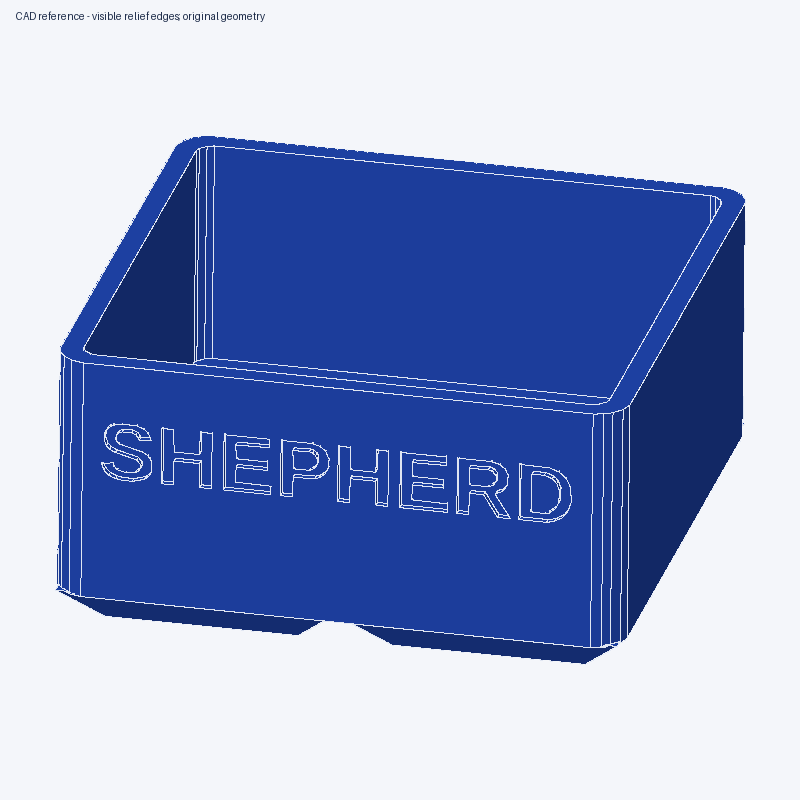

Tray source design reference

Tray

2 × 2 cells · 27.25 mm installed height

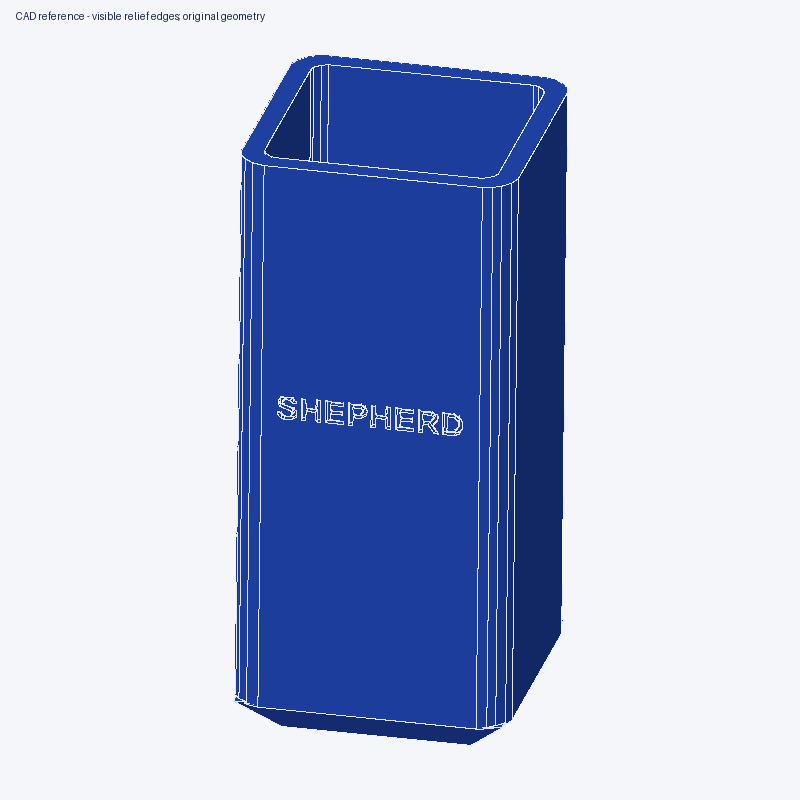

Short cup source design reference

Short cup

1 × 1 cells · 57.25 mm installed height

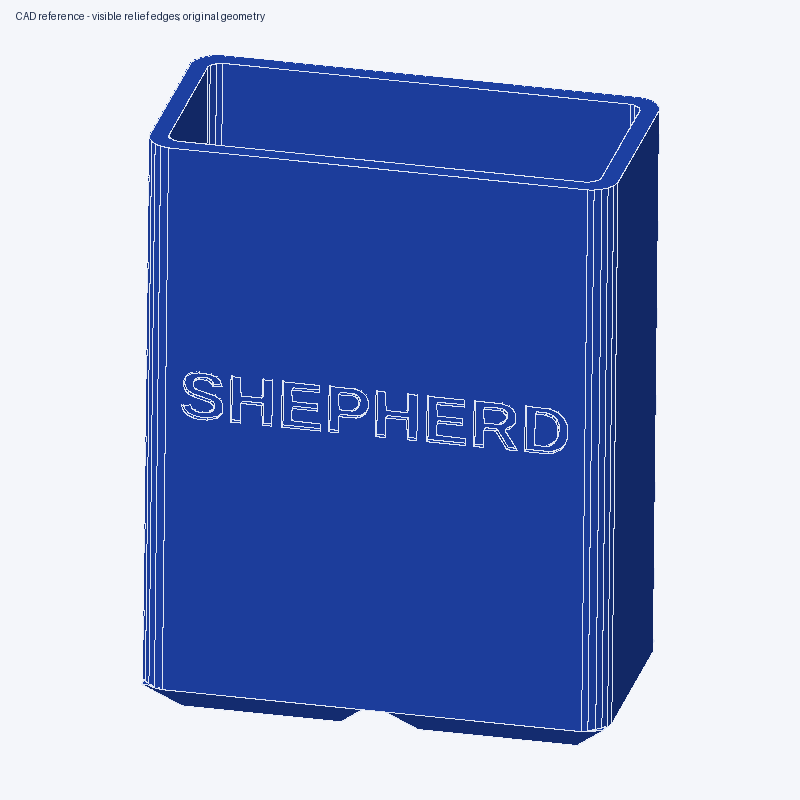

Wide bin source design reference

Wide bin

2 × 1 cells · 67.25 mm installed height

Dimensions and fit details

Available grooved bases: 4 × 4 (101.6 × 101.6 mm), 6 × 4 (152.4 × 101.6 mm), and 8 × 4 (203.2 × 101.6 mm). Base thickness is 5 mm. The 6 × 4 and 8 × 4 bases can be turned 90° for 4 × 6 and 4 × 8 layouts. These use the same rigid bases. An overflowing selection stays in the holding area until it fits.

Module heights already include installation seating. Measure clear space above the bottom of the base. Layout checks enforce occupied cells, boundary limits and installed height.
